Specifications:
1. Carbonated soft drinks filling machine
2. CE SGS
3. Credible price & quality
4. Provide engineers to install
Machine advantage:
1. The CGF Gas free drink filling machine For gas drink, as coca cola
2. It is Suit for 300ml-2000ml bottle

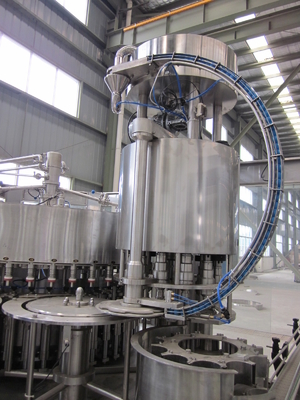

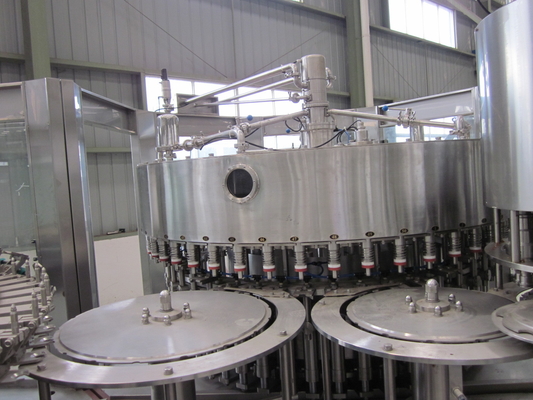

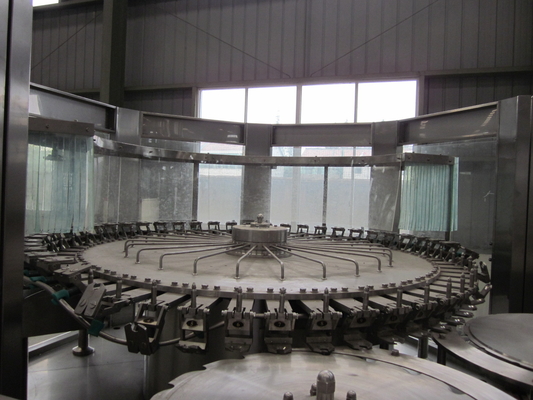

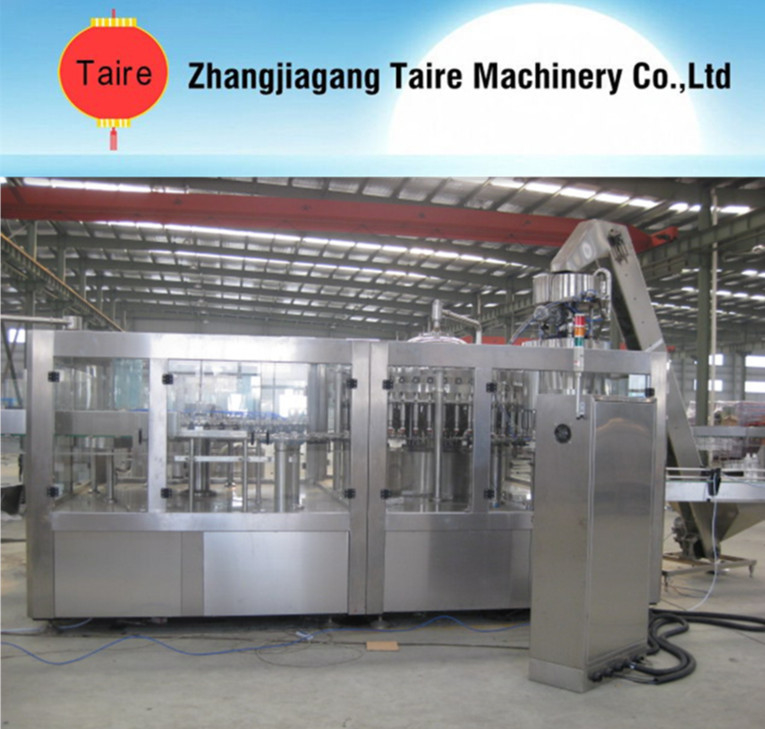

3. It is washing filling capping 3 in 1 machine full automatic
4. Our company have passed CE, ISO certification
Usage:
The series equipment is used for pet bottled mineral water, pure water, fruit juice alcoholic drink not containing gas, such as production, in rushed bottle, filling and capping machine.
Features:
Hanging card bottle bottle conveying structure, changing bottle model more convenient, quick, the host USES the advanced PLC programmable automatic control technology, the key electric elements adopt international famous products.
The main technical parameters:
|
Model:
|
CGF 14/12/5
|
CGF 18/18/6
|
CGF 24/24/8
|
|
Capacity:500ml(b/h)
|
2000-4000
|
4000-6000
|
8000-10000
|
|
Suitable Bottle:(mm)
|
150-340
|
150-340
|
150-340
|
|
Suitable Cap:
|
φ50-φ90(mm)
|
|
Filling Pressure:
|
0.2-0.3 Mpa
|
|
Power: (kW)
|
3.13
|
3.84
|
4.1
|
|
Filling Temperature:
|
Room Temperature
|
|
Size: L×W×H (mm)
|
2250×1640×2100
|
2430×1800×2100
|
3050×2060×2100
|
|
Total Weight:(kg)
|
2500
|
3000
|
4000
|
|
Quotation(USD)
|
18300
|
23200
|
30500
|
