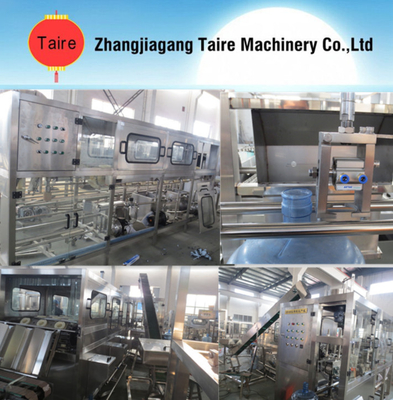

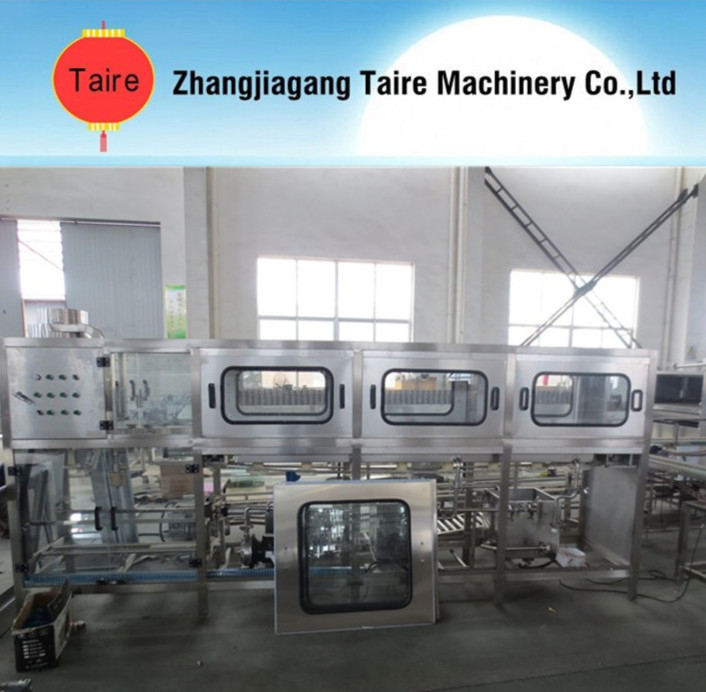

1, QGF-800 washing-filling-capping machine
QGF-800 is special for 3 & 5 gallon drink water production line which is an ideal equipment for filling mineral water, distilled water, purified water. The main material is stainless steel which is corrosion resisting and easy to clean. Main electric original uses SIEMENS,OMRON brand, and gas circuit uses AIRTAC brand products. The jet nozzle of washing inner and outer barrel is used of the USA Spray company unique equipments. The whole machine has compact structure, high and stable work efficiency, correct and sensitive motion, high degree of automation.
Parameter
1, Model:QGF-800
2, Filling head:4
3, Filling volume:3 &5 gallon
4, Size of barrel:Φ276×490
5, Production capacity:800bph
6, Power:380V,50HZ,max power consumption: 4KW, due to the intermittent power unit start-up, so only for 3 kw at normal work
7 Water consumption:6 T/H of filling, 2 T/H hot alkali soda (circulate using), 2 T/H of tap water
8, There are 9 working procedures: the first and second processes are (hot) alkaline water circulation, washing inner, outer, and bottom of the barrel. The third process is (hot) alkaline water drip, the forth and fifth process are thedisinfectant, disinfect the inner and outer barrel. The sixth is the disinfectant drip, the seventh is the sterile water flush, washing the inner barrel. The eighth is purified water washing, rinsing inner barrel, and the last is purified water drip.
9, Air source: 0.5-0.6mpa, air consumption: 350L/M
10, Structure type: gear rack space transmission and chain capping.
11, Machine dimension:Washing machine 4000*1500*1800mm
Filling and capping machine 2500*900*1800mm
