Specification
1,Model:LP12-LP30

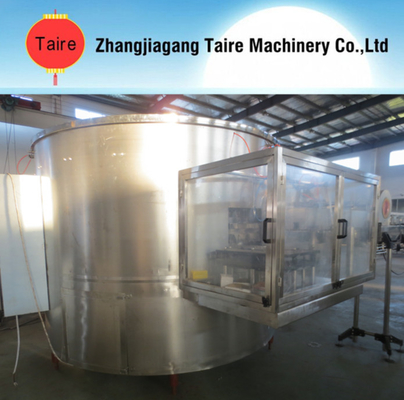

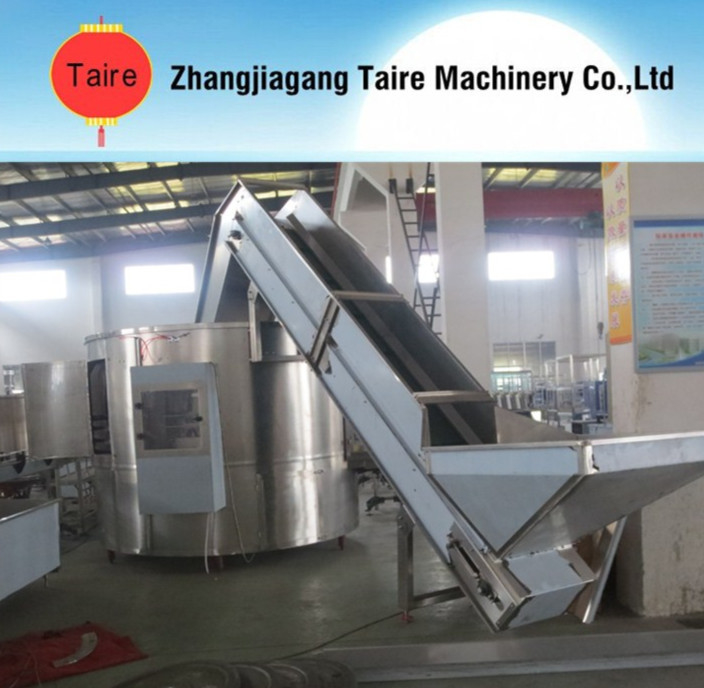

2,LP bottle unscrambler
3,Bottle type: Diameter: 50-90,Height: 150-290
4,CE, ISO certification
Characteristic:
1) Suitable for unscrambling disordered polyester bottles
2) Aligns bottles and discharges them by vacuum conveyor
3) Automatic
4) High speed operation ;
5) Easy to combine with all kinds of fillers or filling production lines.
Main features
1. Outer canister, rotary canister and contact parts with bottles are made of S/S SUS304. Frames are welded with carbon steel of fine quality, with anti-rust treated and sprayed of surface.
2. Body of canister is sealed, and kept with slight positive pressure to prevent dust.
Top of canister is equipped with removable cover, easy to maintain and clean.
3. Equipped with defective bottle rejection device. No need stop to clean up in running condition. The testing switch in the machine will alarm and stop the machine. Operators can dredge it according to signals.
4. Specially designed bottle tank can apply to bottles of dimensions at small difference, no need to change tank to save investment. For example, if you want to change 600ml with 500ml with same diameter, only 30mm shorter, you need not to change the tank, just do some adjustment.
5. The midst of canister is equipped with exit for mold replacing, easy for dismantlement and clean up of bottle tank.
6. The under of canister is equipped with mainteniance exit, easy for operators to contact the bottom of machine.
7. Equipped with manual operators.
8. Prefect safeguard device.
9. Bottle-jam inspector is equipped on feed-out star wheels to safeguard machine.
10. Equipped with oil filling port to lubricate the gears, bearings, and cams.1) Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur
Main technical parameters:
|
Bottle Unscrambler
|
|
Model
|
LP-12
|
LP-14
|
LP-16
|
LP-18
|
LP-21
|
LP-24
|
LP-30
|
|
Type
|
Automatic
|
Automatic
|
Automatic
|
Automatic
|
Automatic
|
Automatic
|
Automatic
|
|
Output(BPH)
|
6000
|
8000
|
10000-12000
|
20000
|
24000
|
30000
|
33000
|
|
PLC sys.
|
Siemens
|
|
Frequency conv.
|
Mitsubishi
|
|
Electric sensor
|
Omron
|
|
Relay
|
Siemens
|
|
Air sys.
|
Smc/festo
|
|
Main power
|
1.5kw
|
1.5kw
|
1.5kw
|
3kw
|
3kw
|
3.7kw
|
3.7kw
|
|
Size DxH(mm)
|
1700x2000
|
1800x2000
|
2240*2200
|
2640x2300
|
3020x2650
|
3400x2650
|
3800x2650
|
|
weight
|
2T
|
2.8T
|
3.5T
|
4T
|
4.5T
|
5T
|
5.5T
|
Why our machine is better than other similar machines
1. Small profits and quick returns is our business policy, so the water bottling line is worth every cent.
2. We focus on advanced supply chain management, which can ensure the raw materials are with
good quality and competitive price.
3. Workers, engineers and boss of our company have spent more than 10 years in beverage
machinery industry,so they have rich experience to provide Turn Key project Service.
4. There are several engineers available to oversea service. As long as our customers need them,
they can leave for your country as soon as possible, our principle to let our production line always runsnormally.
5. We can update the production status for our customer once per week, our target is to let our
customer receive goods on time.
About our company
We can provide beverage filling line as below:
1).Complete mineral & pure water production line
2).Complete fruit juice production line
3).Complete soft drink production line
4).Gallons water production line
5). Beer filling & packaging line
We strictly manufacture and manage according to IOS9001 System.And we sincerely welcome customers all over the world visit our company,or visit our website.
After-sale servic
1. 1 year quality warranty and supply spare parts at low cost for life span after sale. We keep the original drawings of spare parts, so it can match with the rest part of machine.
2. 24 hours/365 days online technical service.
3. Training offered
